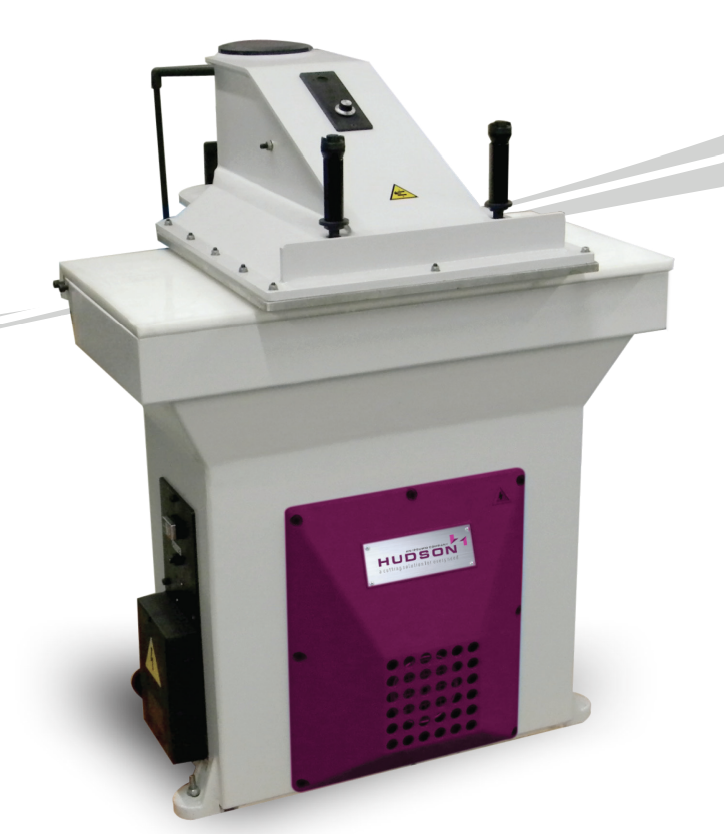

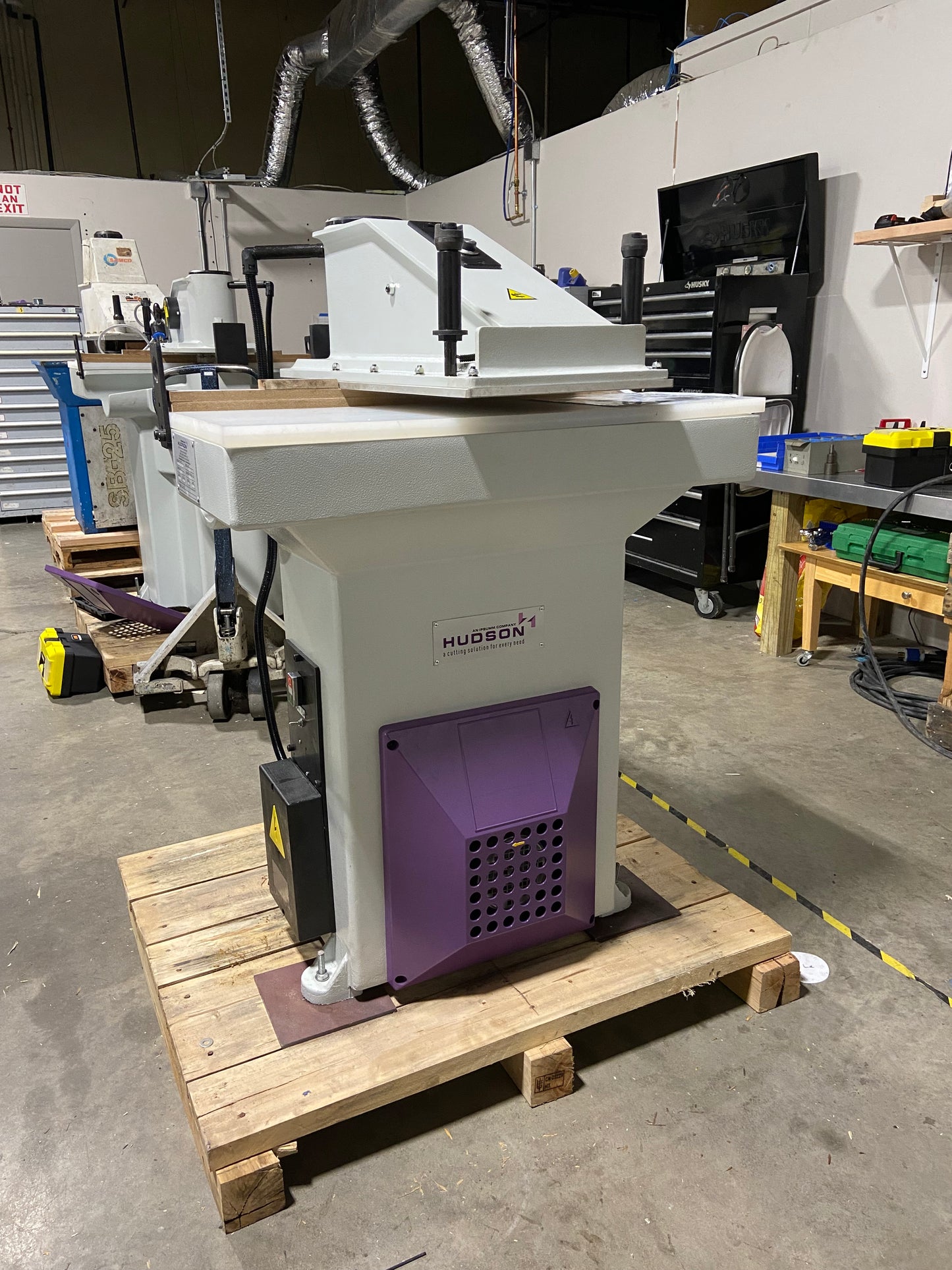

HA-Series Beam Clicker Press
HA-Series Beam Clicker Press
Couldn't load pickup availability
This popular die cutting press is suitable for use with an extensive range of narrow to medium width sheets or roll goods materials, such as textiles, plastics, rubber, foam, composites, paper and paperboard, wood, leather, cork and felt.
If you have converted part of your manufacturing space to produce needed PPE supplies, this is the die cutter that can easily cut through multiple layers of cloth or plastic for mass production of face masks and/or face shields.
Features & Benefits
- Rugged cast iron frame
- Two cutting bed sizes
- Three steel fabricated swinging beam widths
- Automatic depth of cut setting with fine-tuning potentiometer
- Special selectable setting for use with small area dies; prevents over-penetration into the cutting pad
- Precise cutting results ensuring reduced wear of cutting pads and dies
- Excellent operator visibility
- Fitted exclusively for two-hand trip operation
- Low maintenance
- Low static and dynamic floor load
- Low noise level
-
Complies with OSHA regulations
Specs
| Model |
22 Ton 14'' |
27 Ton 20'' |
27 Ton 24'' |
| Cutting Force |
22 US Tons |
27 Ton |
27 Ton |
| Cutting Bed Size |
16.9'' x 35.4'' |
19.7'' x 39.4'' |
19.7'' x 39.4'' |
| Beam Width |
14.5'' |
19.7'' |
24'' |
| Maximum Open Daylight* |
4.9'' |
4.9'' |
4.9'' |
| Minimum Open Daylight* |
1.4'' |
1.4'' |
1.4'' |
| Pump Motor |
1.5 HP |
2 HP |
2 HP |
| Net Weight |
1,635 lbs |
2,500 lbs |
2,500 lbs |
| Dimensions (w x d x h) |
36'' x 33'' x 55'' |
40'' x 41'' x 56'' |
40'' x 41'' x 56'' |
Warranty:
- Mechanical Components: 12 months
- Electrical Components: 3 months
- Labor: 3 Months
