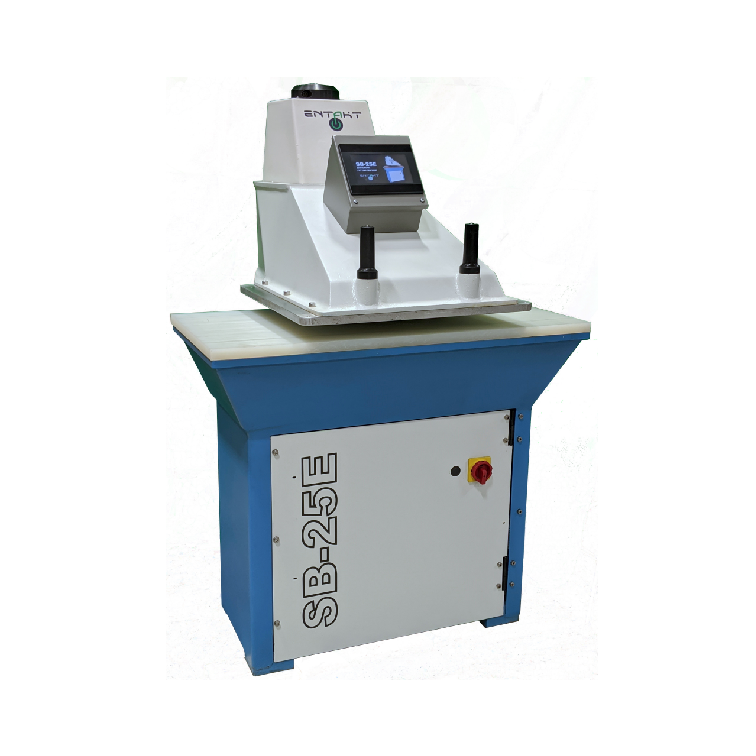

SB-25E Beam Clicker Press
SB-25E Beam Clicker Press
Couldn't load pickup availability

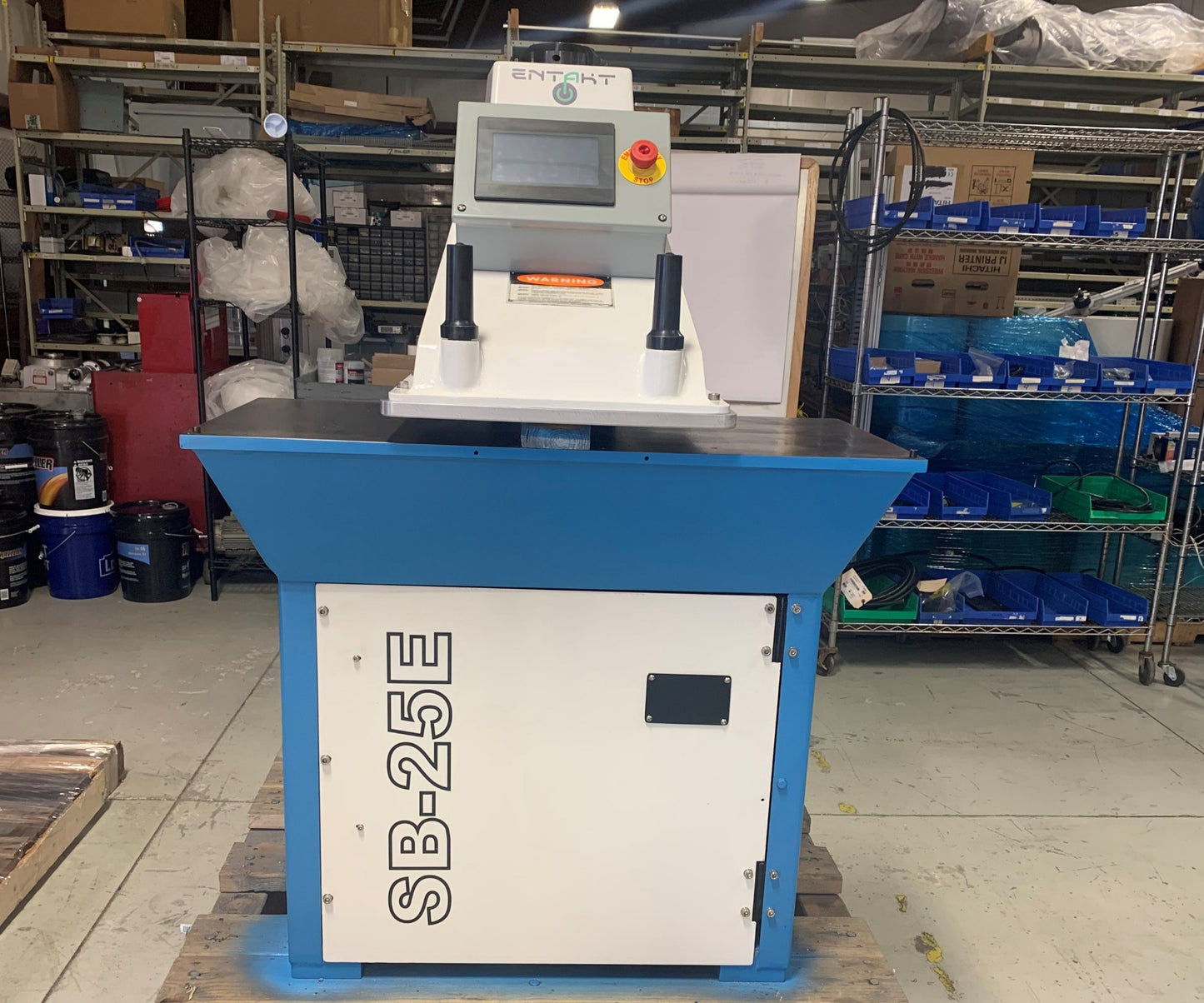

The SB-25E is an original SB-25 rebuilt to your budget by skilled ENTAKT technicians. A new ENTAKT designed electrical control system is added to all machines to improve the reliability, safety and ease of use.
A 7" HMI touchscreen provides simplified operator controls for setting die height and daylight. A protected technician's screen provides access to testing various functions of the machine.
The SB series are noted for their robust swing beams mounted on a stationary column by two special bushes. This produces minimal deflection of the swing beam during cutting and permits easy, fast and accurate beam positioning due to low swing force requirements.
| Cutting Force | 25 Tons | |
| Bed Size | 39.5'' x 20'' | |
| Swing Beam Width | 18.5'' | |
| Working Length | 39.5'' | 39.5" |
| Cutting Stroke Maximum | 6'' | 6" |
| Cutting Stroke Minimum | 0.3'' | 0.3" |
| Daylight Maximum (without cutting pad) | 7'' | 7" |
| Daylight Minimum (without cutting pad) | 1.2'' | 1.2" |
| Electrical Supply | 220V/3ph/60cycle | 220V/3ph/60cycle |
| Oil | 12 Gal (46 wgt) | 12 Gal (46 wgt) |
| Weight (without oil) | 1763 lbs | 1763 lbs |
| Dimensions (on pallet) | 69'' x 43.5'' x 45.5'' | 39" x 43.5" x 45.5" |
Warranty:
- Mechanical Components: 3 months
- Electrical Components: 3 months
- Labor: 3 Months
